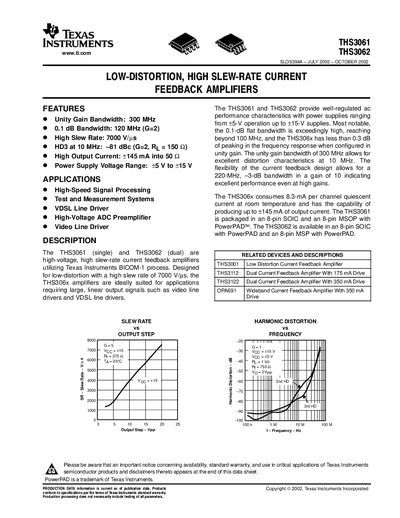

The THS306x amplifiers are high-voltage, high slew-rate current feedback amplifiers designed for low-distortion with a high slew rate of 7000 V/µs. They are ideally suited for applications requiring large, linear output signals such as video line drivers and VDSL line drivers.
The THS3061 (single) and THS3062 (dual) are high-voltage, high slew-rate current feedback amplifiers utilizing Texas Instruments BICOM-1 process. They feature a unity gain bandwidth of 300 MHz and a slew rate of 7000 V/s, making them ideal for video line drivers and VDSL line drivers.
| Unity Gain Bandwidth | 300 MHz |
|---|---|
| High Slew Rate | 7000 V/s |
| HD3 at 10 MHz (G=2) | -81 dBe |
| High Output Current | +145 mA into 50 Ω |
| Power Supply Voltage Range | +5 V to +15 V |
The device can produce up to +145 mA of output current when sourcing into a 50-ohm load.
The power supply voltage range is from +5 V to +15 V.
The THS3061 is packaged in an 8-pin SOIC, while the THS3062 is available in an 8-pin SOIC.
