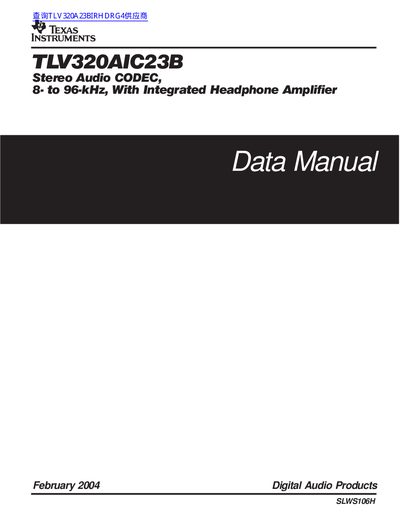

Introduces Texas Instruments' digital audio product SLWS106H, including product specifications and technical parameters.
The TLV320AIC23B is a high-performance stereo audio codec utilizing multibit sigma-delta technology for its analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). It supports data-transfer word lengths of 16, 20, 24, and 32 bits with sample rates ranging from 8 kHz to 96 kHz. The device is designed for portable digital audio-player and recorder applications, such as MP3 players, offering high-fidelity recording and playback in a compact, power-saving design.
| ADC Signal-to-Noise Ratio | 90-dBA |
|---|---|
| DAC Signal-to-Noise Ratio | 100-dBA |
| Core Digital Supply Voltage | 1.42 V-3.6 V |
| Buffer and Analog Supply Voltage | 2.7V—3.6 V |
| Sampling Frequency Support | 8-kHz —96-kHz |
| Playback Power Consumption | less than 23 mW |
| Microphone Amplifier Gain | 1 to 5 |
The device supports sample rates from 8 kHz to 96 kHz.
The device supports sample rates from 8 kHz to 96 kHz.
The ADC features up to 90-dBA signal-to-noise ratio at audio sampling rates up to 96 kHz.
The device consumes less than 23 mW during playback only.
