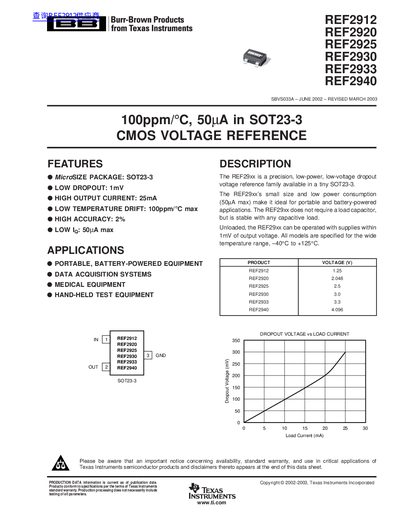

REF2912 REF2920 REF2925 REF2930 REF2933 REF2940 is a precision, low-power, low-voltage dropout voltage reference family from Texas Instruments, available in a tiny SOT23-3 package. The REF29xx's small size and low power consumption (50µA max) make it ideal for portable and battery-powered applications. The REF29xx does not require a load capacitor, but is stable with any capacitive load. Unloaded, the REF29xx can be operated with supplies within 1mV of output voltage. All models are specified for the wide temperature range, –40°C to +125°C.
The REF29xx family is described as a precision, low-power, low-voltage dropout voltage reference available in a tiny SOT23-3 package. The specific device covered here, the REF2912, provides a 1.25V output with features including micro-size packaging, low quiescent current of 50uA max, and high output current capability up to 25mA.
| Output Voltage | 1.25V |
|---|---|
| Temperature Drift | 100ppm/°C max |
| Initial Accuracy | 2% |
| Operating Temperature Range | -40°C to +125°C |
| Package Type | SOT23-3 |
The device supports a high output current of 25mA.
No, it does not require a load capacitor but is stable with any capacitive load.
It is suitable for portable battery-powered equipment, data acquisition systems, and medical equipment.
