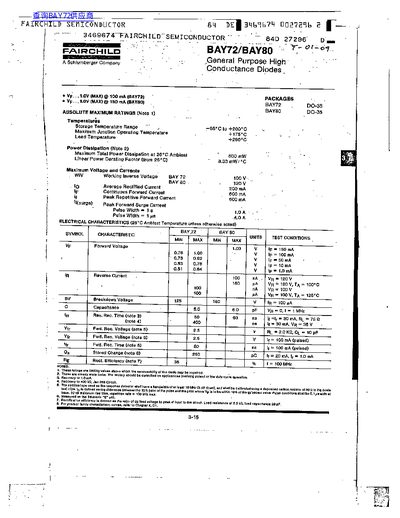

This document is a datasheet from Fairchild Semiconductor (a Schlumberger Company) covering the BAY72 and BAY80 models of General Purpose High Conductance Diodes. The devices are available in DO-35 packages with specific voltage and current ratings.
The text provides absolute maximum ratings, including storage temperatures up to +200°C and junction operating temperatures up to +176°C. It also lists electrical characteristics such as forward voltage, reverse current, breakdown voltage, capacitance, and recovery time at 25°C ambient temperature.
| Storage Temperature Range | -65°C to +200°C |
|---|---|
| Maximum Junction Operating Temperature | +176°C |
| Working Inverse Voltage (BAY 72) | 100 V |
| Working Inverse Voltage (BAY 80) | 120V |
| Average Rectified Current | 200 mA |
| Forward Voltage (ip = 100mA) | 0.78 to 1.00 V |
| Capacitance | 6.0 pF |
The storage temperature range is from -65°C to +200°C.
The working inverse voltage is 100 V for BAY72 and 120V for BAY80.
