KSB564A is a PNP Epitaxial Silicon Transistor produced by Fairchild Semiconductor Corporation. Its rated maximum collector-emitter voltage is -30 V, collector-emitter breakdown voltage is -25 V, collector current is -1.0 A, collector power dissipation is 800 mW, and its package type is TO-92.

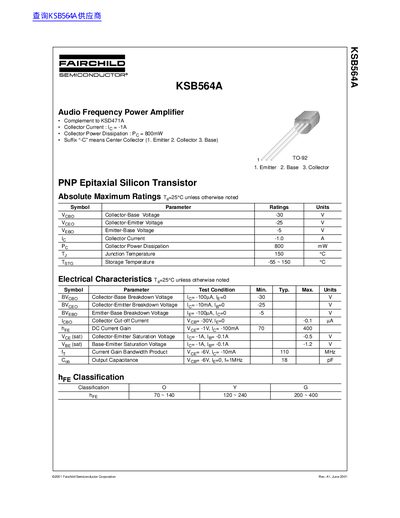

This document is a technical datasheet for the Fairchild Semiconductor KSB564A, which is a PNP epitaxial silicon transistor designed as an audio frequency power amplifier. It serves as a complement to the KSD471A device.
The datasheet provides absolute maximum ratings, electrical characteristics including DC current gain and bandwidth product, typical performance curves, package dimensions for the TO-92 case, and trademark information.
| Collector Current (Ic) | -1.0 A |
|---|---|
| Collector Power Dissipation (Pg) | 800 mW |
| Junction Temperature (Tj) | 150 °C |
| Collector-Base Voltage (Vcbo) | -30 V |
The suffix “-C” means Center Collector.
Pin 1 is the Emitter, Pin 2 is the Base, and Pin 3 is the Collector.
The storage temperature ranges from -55 °C to 150 °C.
