The PDF file provides the specifications of ON Semi TO-18 infrared emitting diode.

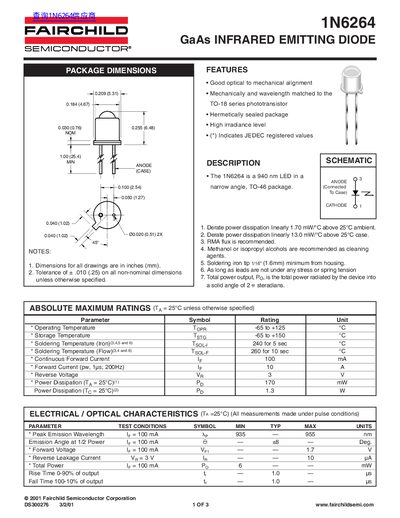

The document describes the Fairchild Semiconductor 1N6264, which is a 940 nm LED designed with good optical to mechanical alignment and hermetically sealed packaging. It is mechanically matched to the TO-18 series phototransistor.
Key specifications include an operating temperature range of -65°C to +125°C, a continuous forward current rating of 100 mA, and a peak emission wavelength between 935 nm and 955 nm. The device features a narrow angle radiation pattern suitable for specific optical applications.
| Peak Emission Wavelength | 935 - 955 nm |
|---|---|
| Emission Angle at 1/2 Power | +8 - -8 Deg. |
| Forward Voltage (Typical) | 1.7 V |
| Reverse Leakage Current (Max) | 10 uA |
| Continuous Forward Current | 100 mA |
The typical peak emission wavelength is between 935 nm and 955 nm when tested at 100 mA.
The device operates from -65°C to +125°C.
