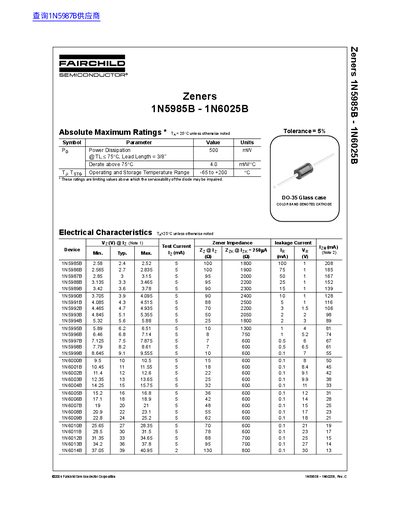

Datasheet for Fairchild 1N5985B‑1N6025B Zener diodes, including electrical characteristics, maximum ratings, and top‑mark information.
This datasheet provides the design specifications for the Fairchild 1N5985B‑1N6025B series of Zener diodes. It lists electrical characteristics such as Zener voltage, impedance, and leakage current for each part number.
Key sections include Electrical Characteristics, Absolute Maximum Ratings, Top Mark Information, marking guidelines, and product status definitions. The document also contains a disclaimer and trademark information.
| Operating Temperature Range | -65 °C to +200 °C |
|---|---|
| Forward Voltage (VF) at IF=200 mA | 1.2 V |
They are specified for operation and storage from –65 °C up to +200 °C.
The top‑mark includes the Fairchild logo, device name lines, a two‑digit date code, and optional large‑die identification.
