Fairchild Semiconductor UF4001-UF4007 Fast Rectifiers Datasheet

This document describes the features and characteristics of the UF4001 to UF4007 series fast rectifiers, including low forward voltage drop, high surge current capability, high reliability, and high current capability.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 335 KB
Published: 12 June, 2012
Updated: 28 September, 2023
Models: UF4001, UF4007
MD5 checksum: 40F27E8F378DF997C28E45B2B3F7C554

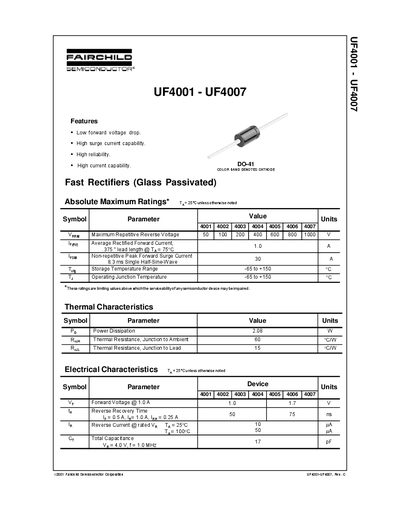

PDF: Fairchild Semiconductor UF4001-UF4007 Fast Rectifiers Datasheet PDF

About this manual

This document provides technical specifications for the Fairchild Semiconductor UF4001 through UF4007 series of Fast Rectifiers. These glass passivated devices are designed with low forward voltage drop and high surge current capability for reliable performance.

What's inside

Features
Absolute Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics
Tradeemarks
Disclaimer
Life Support Policy
Product Status Definitions

Specifications

Package Type	DO-41
Non-repetitive Peak Forward Surge Current	30 A
Operating Junction Temperature Range	-65 to +150 °C
Power Dissipation	2.08 W

Frequently asked questions

What is the maximum repetitive reverse voltage for the UF4001?

The maximum repetitive reverse voltage for the UF4001 is 50 V.

What is the maximum operating junction temperature?

The maximum operating junction temperature is +150 °C.

Download PDF (335 KB)
