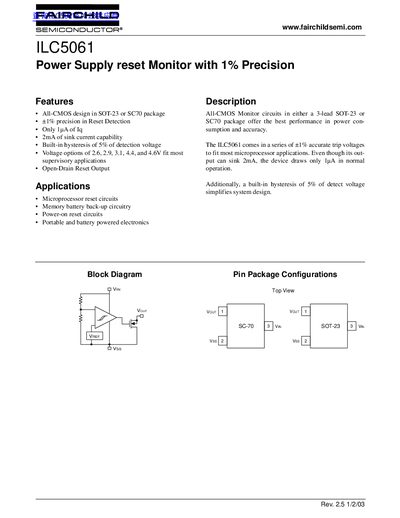

The ILC5061 is a 3-lead SOT-23 or SC70 package open-drain reset output device from Fairchild with ±1% accurate reset detection, 1µA Iq and 2mA sink current capability.
The Fairchild ILC5061 is an all-CMOS Power Supply Reset Monitor designed for microprocessor reset circuits, memory battery back-up, and portable electronics. It features +1% precision in reset detection with a built-in hysteresis of 5% of the detection voltage to simplify system design.
The device offers various trip voltage options (2.3V to 4.6V) and is available in SOT-23 or SC70 packages. It draws only 1pA of supply current in normal operation while providing a sink current capability of up to 2mA.
| Precision | +1% |
|---|---|
| Supply Current (Iq) | 1pA |
| Sink Current Capability | 2mA |
| Hysteresis | 5% of detection voltage |
| Operating Temperature Range (Topr) | -30~+80 °C |
| Storage Temperature Range (Tstg) | -40~+125 °C |
The device draws only 1pA in normal operation.
It is available in SOT-23 or SC70 package configurations.
Voltage options include 2.6, 2.9, 3.1, 4.4, and 4.6V.
