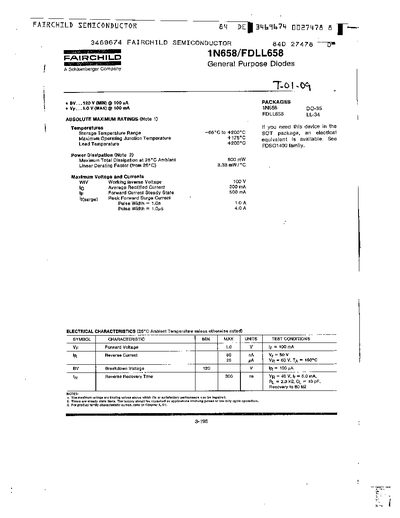

This document is a technical datasheet from Fairchild Semiconductor covering the 1N658 and FDLL658 series of General Purpose Diodes. It provides comprehensive specifications including absolute maximum ratings for temperature and power dissipation, as well as detailed electrical characteristics such as forward voltage, reverse current, and breakdown voltage.
| Working Inverse Voltage (WIV) | 100 V (MIN) @ 100 nA |
|---|---|
| Forward Voltage (VF) | 1.0 V (MAX) @ 100 mA |
| Storage Temperature Range | -65°C to +200°C |
| Maximum Operating Junction Temperature | +175°C |
| Power Dissipation (25°C Ambient) | 500 mW |
