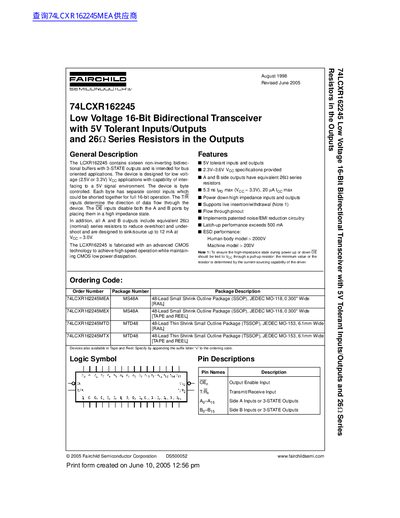

74LCXR162245 is a low voltage 16-bit bidirectional transceiver launched by Fairchild Semiconductor Corporation. The device is fabricated with an advanced CMOS technology and has 5V tolerant inputs and outputs.
The 74LCXR162245 is a low voltage (2.5V or 3.3V) CMOS device containing sixteen non-inverting bidirectional buffers with 3-STATE outputs. It is designed for bus-oriented applications and features 5V tolerant inputs and outputs, allowing interfacing with 5V signal environments. The device includes equivalent 260-ohm series resistors on all A and B outputs to reduce overshoot and undershoot.
| Output Series Resistance | 260 Ohms |
|---|---|
| Propagation Delay (Max) | 5.3 ns |
| ESD Performance (Human Body) | > 2000V |
| Free-Air Operating Temperature | -40°C to +85°C |
Yes, the device features 5V tolerant inputs and outputs.
The maximum propagation delay is 5.3 ns at Vcc = 3.3V.
