The LVX138 is a high-speed 1-of-8 decoder/demultiplexer.

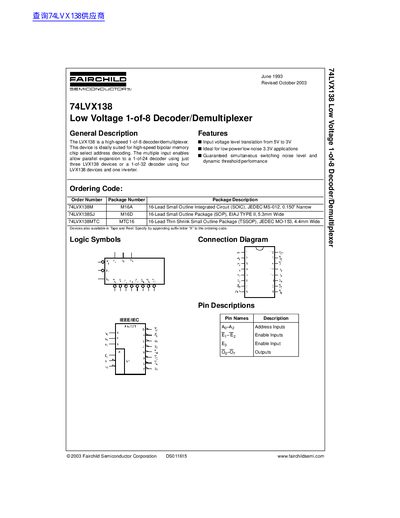

The document describes the Fairchild 74LVX138, a high-speed 1-of-8 decoder/demultiplexer designed for low power/low noise 3.3V applications. It features input voltage level translation from 5V to 3V and is suitable for bipolar memory chip select address decoding.
| Supply Voltage (Vcc) | 2.0V to 3.6V |
|---|---|
| Power Dissipation | 180 mW |
The absolute maximum rating for the supply voltage (Vcc) is +7.0V.
The device should operate between -40°C and +85°C.
The M16A package is a 16-Lead Small Outline Integrated Circuit (SOIC).
