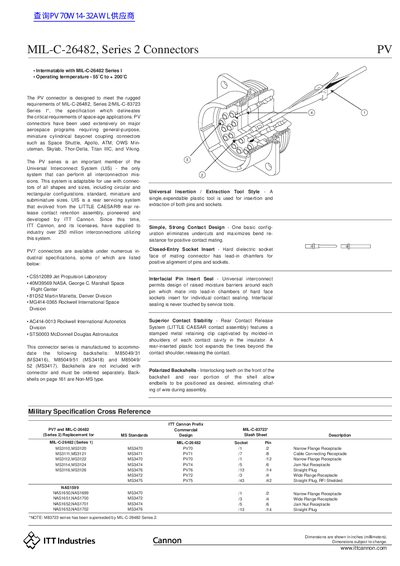

PV7 series connectors are designed by ITT Cannon to meet the rugged requirements of MIL-C-26482 series 2 and MIL-C-83723 series 1 (which has been superseded by MIL-C-26482 series 2) military standards. They have been widely used in the aerospace field, such as Space Shuttle, Apollo, ATM, OWS Min- uteman, Skylab, Thor-Delta, Titan IIIC, etc.
The PV connector series is designed to meet the rugged requirements of MIL-C-26482, Series 2 and MIL-C-83723 Series I specifications. These connectors are utilized in major aerospace programs, including the Space Shuttle, Apollo, and Skylab, as part of the Universal Interconnect System (UIS). The series features a rear servicing system with a stamped metal retaining clip and is available in various shell styles, including narrow flange receptacles, cable connecting receptacles, and straight plugs.
| Operating temperature | -55°C to +200°C |
|---|---|
| Shell Material | Aluminum alloy |
| Insulator Material | Rigid dielectric |
| Contact Material | Copper alloy |
| Contact Finish | Gold |
| Dielectric Withstanding Voltage (Sea Level) | 1500 Vac rms |
| Dielectric Withstanding Voltage (Altitude) | 375 Vac rms |
| Insulation Resistance | 5000 megohms minimum |
PV connectors operate within a temperature range of -55°C to +200°C.
They are compatible with MIL-C-26482, Series 2 and MIL-C-83723 Series I.
No, backshells are not included and must be ordered separately.
