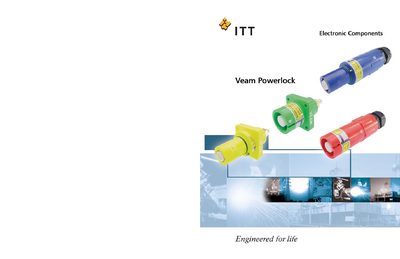

The Veam POWERLOCK connector series for field installable power distribution systems offers the ultimate in safety and reliability under the most severe operating conditions.
The Veam POWERLOCK connector series is designed for field‑installable power distribution systems and offers four standard formats – Panel Source, Line Source, Panel Drain and Line Drain – for use in motors, generators, lighting panels and other heavy‑industrial applications. The catalog describes the various connector types, their applications, and the available accessories such as clamps, extension arms and snap‑lock kits.
Technical data for each connector includes current ratings, contact types, operating voltage, temperature range and environmental protection (IP67). Order codes, part numbers, safety guidelines and customer‑support locations for Germany, Hong Kong and Italy are also provided.
| Number of Contacts | 1 |
|---|---|
| Max. Current Rating | 660 A / 250 A |
| AWG | 4‑6/0 4‑0/0 |
| Contact Termination | 25‑300 mm* / 25‑70 mm? |
| Contact Type | Crimp, set screw / Crimp, threaded post M12 |
| Mating Method | Bayonet |
| Operating Voltage | 1000 V Ac / 415 V Ac |
| Environmental Resistance | IP67 |
| Operating Temperature | -30 °C to 125 °C |
| Mating Cycle | 500 |
| Flammability | UL94‑V‑0 |
| Shell Color | green, black, red, blue, yellow, brown, grey, white |
The maximum current rating is 660 A for the Snaplock version and 250 A for the other version.
Powerlock connectors are rated up to IP67.
