K6 miniature key switches have excellent tactile feel, a wide variety of LED colors, travel and actuation forces available, designed for low-level switching, RoHS compliant.
The K6 series offers miniature momentary‑action key switches with a single make contact (SPST, N.O.) and a variety of LED color options. Features include excellent tactile feel, RoHS compliance, and suitability for automotive, industrial electronics, computers and network equipment.

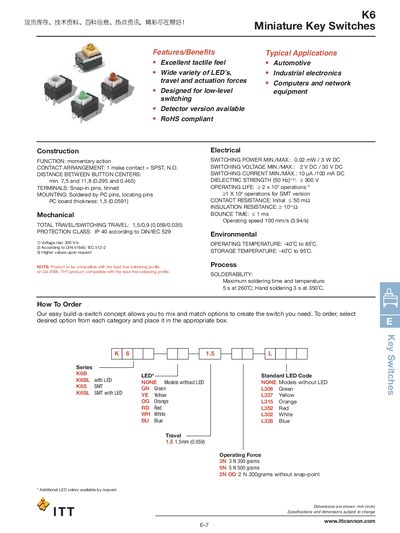

The document details mechanical dimensions, electrical ratings, environmental limits, and soldering guidelines, as well as a simple build‑a‑switch ordering concept that lets users mix and match options such as LED color and travel distance.
| Switching voltage (min./max.) | 2 V DC / 30 V DG |
|---|---|
| Switching current (min./max.) | 10 µA / 100 mA DG |
| Operating temperature range | -40°C to 88°C |
| Protection class | IP40 |
| Contact resistance (initial) | < 50 mΩ |
| Bounce time | < 1 ms |
| Travel / switching travel | 1.5 mm / 0.9 mm |
| Mounting method | Soldered by PC pins, locating pins |
| Operating force | 3 N (300 g) – 5 N (500 g) |
The maximum switching voltage is 30 V DG.
They are rated IP40.
They operate from –40 °C up to 88 °C.
