K5V is a right-angle lighted SMT tact switch with gold plated dome contact, excellent ergonomics, high bright LEDs and reduced space usage on board.
The K5V series offers a right‑angle, lighted tactile switch with gold‑plated dome contacts, high‑bright LEDs, and a compact footprint for board or panel mounting. It is designed for applications such as servers, storage, automotive, network infrastructure, and medical equipment, and meets RoHS compliance.

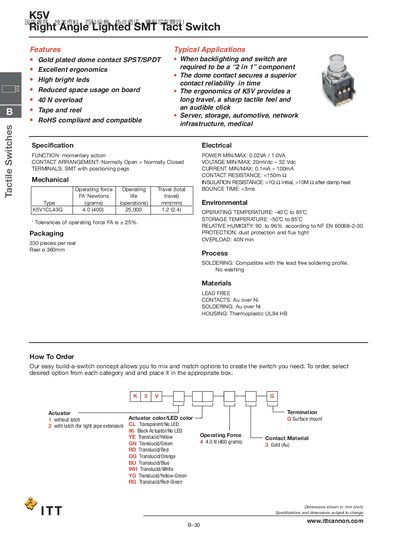

The datasheet details electrical parameters (power, voltage, current, contact resistance), mechanical characteristics (operating force, travel, bounce time, temperature range), packaging options, material construction, and ordering configurations, including actuator colors and latch options.
| Function | Momentary action |
|---|---|
| Power (Min/Max) | 0.02 VA / 1.0 VA |
| Voltage (Min/Max) | 20 mVdc – 32 Vdc |
| Current (Min/Max) | 0.1 mA – 100 mA |
| Contact Resistance | <150 mΩ |
| Insulation Resistance | >1 GΩ initial, >10 MΩ after damp heat |
| Operating Temperature | -40 °C to 85 °C |
| Storage Temperature | -50 °C to 85 °C |
| Relative Humidity | 90 % to 96 % (NF EN 60068‑2‑30) |
| Overload Rating | 40 N min |
| Bounce Time | <5 ms |
The K5V switch is rated for a minimum overload of 40 N.
Yes, the K5V switch is RoHS compliant and compatible.
The SMT version is supplied as 330 pieces per reel, with a reel size of 360 mm.
The switch is compatible with a lead‑free soldering profile and does not require washing.
