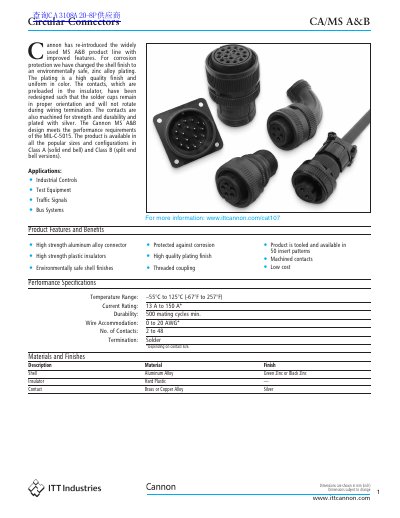

ITT Cannon has re-introduced the widely used MS A&B product line with improved features. The shell finish has been changed to an environmentally safe, zinc alloy plating for corrosion protection. The plating is of high quality and uniform in color. The contacts are preloaded in the insulator and redesigned to ensure the solder cups remain in the proper orientation during wiring termination. The contacts are machined for strength and durability and plated with silver. The Cannon MS A&B design meets the performance requirements of the MIL-C-5015. The product is available in various popular sizes and configurations in both Class A (solid end bell) and Class B (split end bell) versions.
Cannon has re-introduced the widely used MS A&B product line with improved features. The shell finish has been changed to an environmentally safe, high-quality zinc alloy plating for superior corrosion protection. The contacts have been redesigned to ensure solder cups remain in proper orientation during wiring termination and are plated with silver for strength and durability. The design meets the performance requirements of MIL-C-5015.
| Temperature Range | -55°C to 125°C (-67°F to 257°F) |
|---|---|
| Current Rating | 13 A to 150 A |
| Durability | 500 mating cycles min. |
| Wire Accommodation | 0 to 20 AWG |
| No. of Contacts | 2 to 48 |
| Termination | Solder |
| Shell Material | High strength aluminum alloy |
| Insulator Material | High strength plastic |
The connector operates in a temperature range of –55°C to 125°C (-67°F to 257°F).
The current rating ranges from 13 A to 150 A depending on the contact size.
The contacts are plated with silver for strength and durability.
The Cannon MS A&B design meets the performance requirements of the MIL-C-5015.
