S series Slide Switches have 6 to 15 amps, enclosed housing, PC and Snap-in panel mounting, reversing option, RoHS compliant, for portable tools, small appliances and floor care products applications.

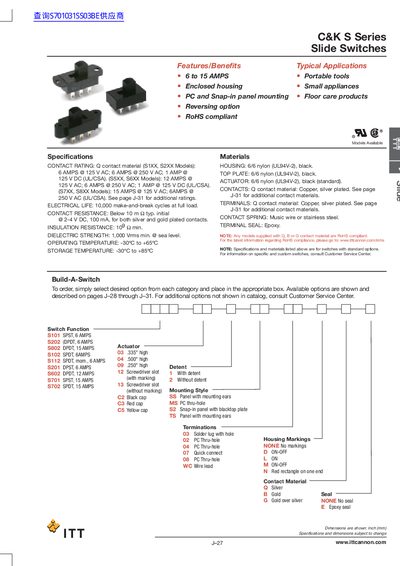

This document serves as a catalog for the C&K S Series slide switches, outlining their features, benefits, and typical applications such as portable tools and small appliances. It provides detailed electrical ratings, including contact ratings up to 15 AMPS depending on the model series, and specifies an electrical life of 10,000 make-and-break cycles.
| Contact Rating (S1XX, S2XX) | 6 AMPS @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC |
|---|---|
| Contact Rating (S7XX, S8XX) | 15 AMPS @ 125 V AC; 6 AMPS @ 250 V AC |
| Electrical Life | 10,000 make-and-break cycles |
| Operating Temperature | -30°C to +65°C |
| Housing Material | 6/6 nylon (UL94V-2) |
| Contact Resistance | Below 10 m Q typ. |
Yes, models supplied with Q, B, or G contact material are RoHS compliant.
The standard actuator color is black.
