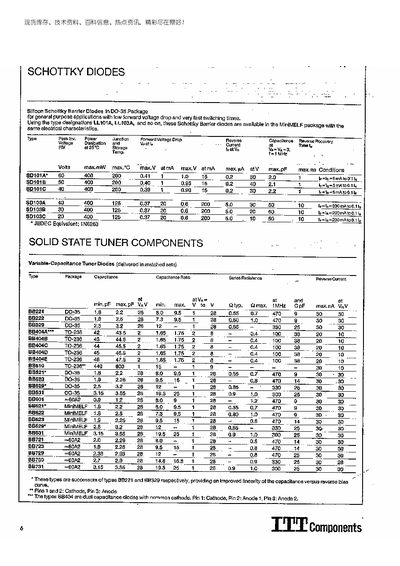

This handbook presents ITT Components' Schottky barrier diodes, including the LL101A, LL103A series and their MiniMELF equivalents, intended for general‑purpose applications that require low forward voltage drop and fast switching. Electrical parameters such as peak inverse power, forward voltage, reverse capacitance and recovery time are listed for each part number.
Package outlines for the diodes are detailed, covering DO‑35, MiniMELF, TO‑92, TQ‑92, DO‑13 metal case, glass‑case and other form factors. Dimensions, pin assignments and typical weights are provided to aid designers in selecting the appropriate package for their circuits.
| Peak Inverse Power (SD101A) | 60 W |
|---|---|
| Capacitance (BB22t) | 1.8–2.2 pF |
