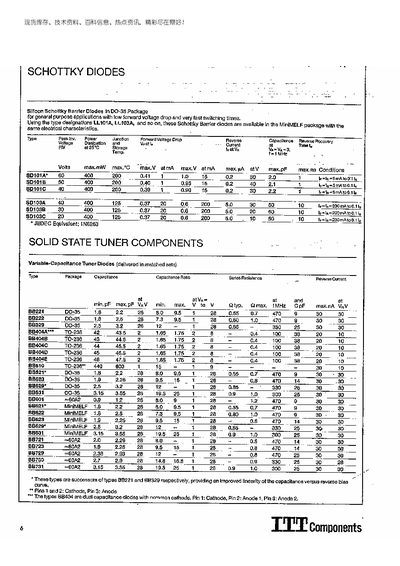

The ITT Components Schottky Diodes handbook lists a range of Schottky barrier diodes, including the Silleon series in DO-35 packages and MiniMELF variants. It provides key electrical parameters such as peak inverse voltage, forward voltage drop, and reverse recovery time for each part.
Package outlines are included for several package styles such as TO-92, TQ-92, and various glass and metal cases, giving dimensions and weight information for designers and technicians.
| Peak Inverse Voltage (SD1I01A) | 60 V |
|---|---|
| Capacitance (BB22t) | 1.8 pF |
| Package type (BB22t) | DO-35 |
The handbook lists DO-35, MiniMELF, TO-92, TQ-92, and various glass and metal case packages.
The SD1I01A diode is rated for a peak inverse voltage of 60 V.
