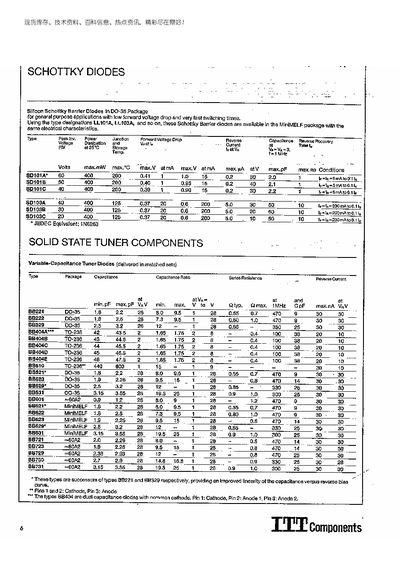

The ITT Components Schottky Diodes handbook lists a family of Schottky barrier diodes (e.g., LL101A, LL103A) and variable‑capacitance tuner diodes, giving their peak inverse voltage, forward voltage drop, reverse capacitance and recovery times. The data are presented for devices in DO‑35, MiniMELF and other common packages.
Package outlines for each diode type are included, showing dimensions, pin assignments and typical weight for TO‑92, TQ‑92, DO‑13, glass and metal cases. The document also notes JEDEC equivalents for selected parts.
| Peak Inverse Voltage (SD1I01A) | 60 V |
|---|---|
| JEDEC Equivalent (SD1I01A) | 1N6263 |
The diodes are supplied in DO‑35, MiniMELF, TO‑92, TQ‑92, DO‑13 metal case, glass case and other standard packages.
The JEDEC equivalent for the SD1I01A diode is 1N6263.
The BB22t diode has a reverse capacitance of 1.8 pF at the specified test conditions.
