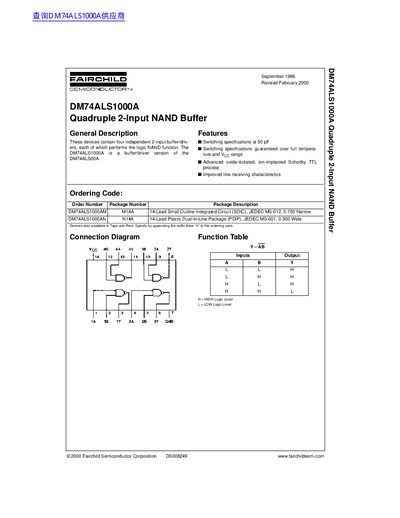

Fairchild DM74ALS1000A Quadruple 2-Input NAND Buffer Datasheet

DM74ALS1000A is a buffer/driver version of the DM74ALS00A. It contains four independent 2-input buffer/driv- ers, each of which performs the logic NAND function. Switching specifications at 50 pF, switching specifications guaranteed over full tempera- ture and VCC range. The device is made with advanced oxide-isolated, ion-implanted Schottky TTL process, which improves line receiving characteristics.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 48 KB
Published: 12 June, 2012
Updated: 01 October, 2023
MD5 checksum: AD4EB1485F753FCAA6F2D9EAD1B5E97D
PDF: Fairchild DM74ALS1000A Quadruple 2-Input NAND Buffer Datasheet PDF

About this manual

This document is a technical datasheet for the Fairchild Semiconductor DM74ALS1000A integrated circuit. The device contains four independent 2-input buffers/drivers that perform the logic NAND function. It is described as a buffer/driver version of the DM74ALSO00A, utilizing an advanced oxide-isolated, ion-implanted Schottky TTL process.

What's inside

General Description
Features
Ordering Code
Connection Diagram
Function Table
Absolute Maximum Ratings
Recommended Operating Conditions
Electrical Characteristics
Switching Characteristics
Physical Dimensions

Specifications

Number of Independent Buffers/Drivers	Four
Logic Function	NAND
Supply Voltage Range (Nominal)	5 V
Operating Free Air Temperature Range	0°C to +70°C
Storage Temperature Range	-65°C to +150°C

Frequently asked questions

What is the logic function of the DM74ALS1000A?

The device performs the logic NAND function.

Is this a buffer/driver version of another part?

Yes, it is a buffer/driver version of the DM74ALSO00A.
