This document describes the DM74ALS05A hex inverter with open collector outputs. It features advanced oxide-isolated, ion-implanted Schottky TTL process and improved AC performance. The open-collector outputs of this device require external pull-up resistors.

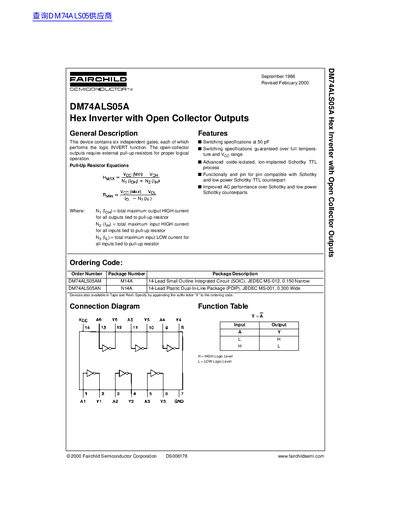

This document is a technical datasheet for the Fairchild Semiconductor DM74ALS05A, a device containing six independent gates that perform the logic INVERT function. The chip utilizes an advanced oxide-isolated, ion-implanted Schottky TTL process and features open-collector outputs which require external pull-up resistors for proper logical operation.
| Operating Temperature Range | 0°C to +70°C |
|---|---|
| Logic Function | Hex Inverter (6 independent gates) |
| Output Type | Open Collector Outputs |
The device contains six independent gates, each performing the logic INVERT function.
Yes, the open-collector outputs require external pull-up resistors for proper logical operation.
