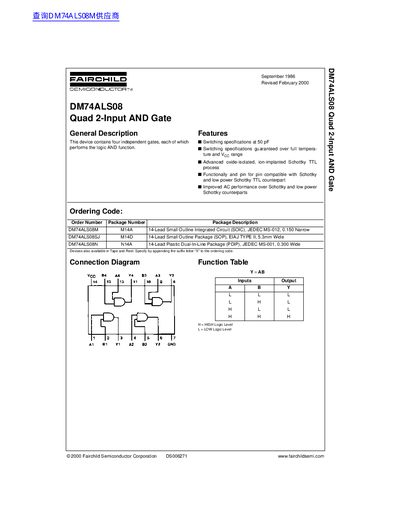

Fairchild DM74ALS08 Quad 2-Input AND Gate Datasheet

This document describes the features and characteristics of the DM74ALS08 Quad 2-Input AND Gate product produced by Fairchild Semiconductor Corporation.

Brand: Fairchild
Category: INTEGRATED CIRCUITS
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 61 KB
Published: 12 June, 2012
Updated: 29 September, 2023
MD5 checksum: 6B6FFC5AB1290EA286CF594BF7A4D678
PDF: Fairchild DM74ALS08 Quad 2-Input AND Gate Datasheet PDF

About this manual

This document is a technical datasheet for the Fairchild Semiconductor DM74ALS08M, a Quad 2-Input AND Gate. It describes the device's logic function, features, and compatibility with Schottky TTL counterparts. The text provides ordering codes for various packages including SOIC, SOP, and PDIP.

What's inside

General Description
Features
Ordering Code
Connection Diagram
Function Table
Absolute Maximum Ratings
Recommended Operating Conditions
Electrical Characteristics
Switching Characteristics
Physical Dimensions

Specifications

Operating Temperature Range	0°C to +70°C

Frequently asked questions

Is it compatible with other TTL types?

Yes, it is functionally and pin for pin compatible with Schottky and low power Schottky TTL counterparts.

What logic function does the DM74ALS08M perform?

The device performs the logic AND function.

How many independent gates are contained in this device?

This device contains four independent gates.

What is the free air operating temperature range for the N package?

The operating free air temperature range is 0°C to +70°C.
