The DM74ALS04B is a logic gate circuit produced by Fairchild Semiconductor Corporation. It contains 6 independent gates, each of which performs the logic INVERT function. The product features include switching specifications at 50pF capacitor, switching specifications guaranteed over full temperature and VCC range, advanced oxide-isolated, ion-implanted Schottky TTL process, functionally and pin for pin compatible with Schottky and low power Schottky TTL counterpart, and improved AC performance over Schottky and low power Schottky counterparts.

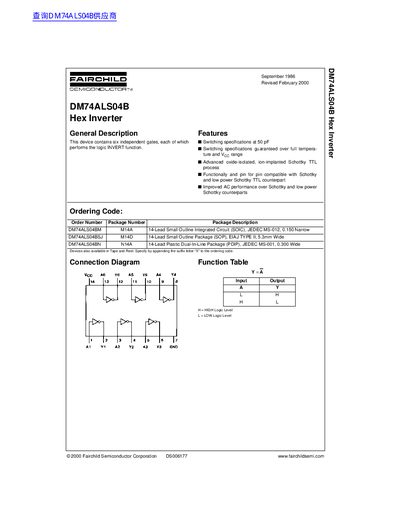

This document is a datasheet for the DM74ALS04B Hex Inverter from Fairchild Semiconductor. The device contains six independent gates that perform the logic INVERT function. It utilizes an advanced oxide-isolated, ion-implanted Schottky TTL process and is functionally and pin-for-pin compatible with Schottky and low power Schottky TTL counterparts.
| Storage Temperature Range | -65°C to +150°C |
|---|---|
| Number of Gates | Six independent gates |
| Logic Function | INVERT |
The device contains six independent gates, each of which performs the logic INVERT function.
Yes, it is functionally and pin-for-pin compatible with Schottky and low power Schottky TTL counterparts.
