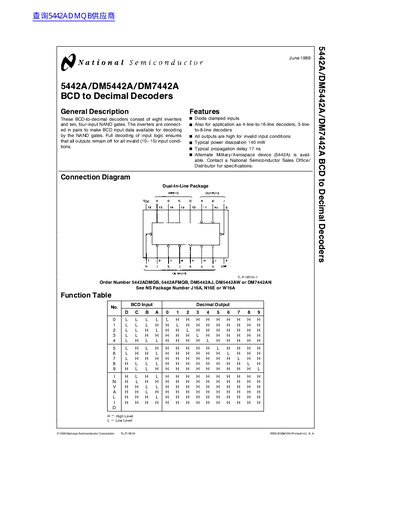

5442A�DM5442A�DM7442A BCD to Decimal Decoders is a logic circuit device produced by National Semiconductor.
This document provides technical specifications and electrical characteristics for the 5442A/DM5442A/DM7442A family of BCD-to-decimal decoders. The devices consist of eight inverters and ten four-input NAND gates, ensuring all outputs remain off for invalid input conditions (10-15). They are also suitable for application as 4-line-to-16-line or 3-line-to-8-line decoders.
| Typical power dissipation | 140 mW |
|---|---|
| Typical propagation delay | 17 ns |
| Supply Voltage (Nominal) | 5 V |
| High Level Input Voltage | 2 V |
| Low Level Input Voltage | 0.8 V |
| High Level Output Current | -0.8 mA |
| Low Level Output Current | 16 mA |
| Operating Free Air Temperature (DM74) | -55°C to +70°C |
Yes, they can be used as 4-line-to-16-line decoders or 3-line-to-8-line decoders.
All outputs remain high for invalid input conditions (10-15).
Yes, the Alternate Military/Aerospace device (5442A) is available.
