This document describes the features and characteristics of TL6517 DM5445 DM7445 BCD-to-decimal decoders-drivers. It consists of eight inverters and ten four-input NAND gates, which are used to decode BCD input data into outputs. Full decoding of BCD input logic ensures that all outputs remain off for all invalid (10-15) binary input conditions. These decoders feature high-performance NPN output transistors designed for use as indicator-relay drivers or as open-collector logic-circuit drivers. The high-breakdown output transistors are compatible for interfacing with most MOS integrated circuits.

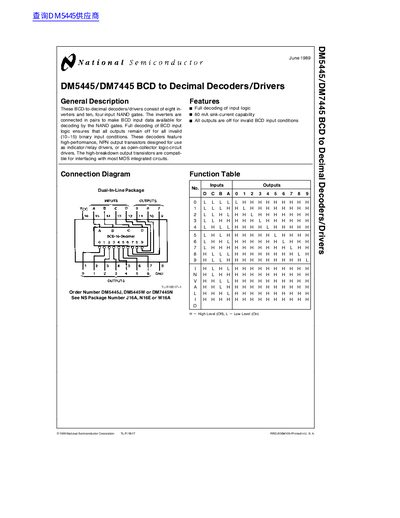

The DM5445/DM7445 are BCD-to-decimal decoders/drivers consisting of eight inverters and ten four-input NAND gates. They feature full decoding of input logic, ensuring all outputs remain off for invalid binary input conditions (10-15). The devices utilize high-performance NPN output transistors designed for use as indicator/relay drivers or open-collector logic-circuit drivers, compatible with most MOS integrated circuits.
| Sink Current Capability | 80 mA |
|---|---|
| Supply Voltage (DM5445) | 4.5V to 5.5V |
| Operating Temperature (DM5445) | -55°C to +125°C |
| Operating Temperature (DM7445) | -65°C to +150°C |
| Low Level Output Current | 20 mA |
| Propagation Delay Time | 49.5 ns |
The devices feature an 80 mA sink-current capability.
The devices feature high-performance, NPN output transistors designed for use as indicator/relay drivers.
