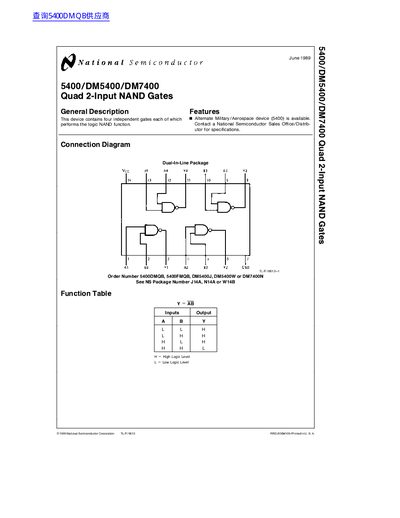

This document describes the features and characteristics of TL�F�6613 5400�DM5400�DM7400 Quad 2-Input NAND Gates.
This document is a datasheet for the National Semiconductor 5400/DM5400/DM7400 series of Quad 2-Input NAND Gates. It provides a general description of the device logic function and lists available order numbers for various package types, including Dual-In-Line, Ceramic, and Flat packages.
The document details the absolute maximum ratings, recommended operating conditions, and electrical characteristics for both military (DM54) and commercial (DM74) variants. It also includes a function table, switching characteristics, and physical dimensions for the available packages.
| Supply Voltage (Voc) | 4.5V to 5.5V |
|---|---|
| High Level Input Voltage (ViH) | 2V |
| Low Level Input Voltage (ViL) | 0.8V |
| Operating Temperature (DM54) | -55°C to +125°C |
| Propagation Delay Time (Low to High) | 22ns |
| Propagation Delay Time (High to Low) | 15ns |
The device contains four independent gates that perform the logic NAND function.
Order numbers include 5400DMQB, 5400FMQB, DM5400J, DM5400W, and DM7400N.
No, National's products are not authorized for use as critical components in life support devices without express written approval.
