This is a document about TL6492 5402 DM5402 DM7402 Quad 2-Input NOR Gates. This device contains four independent gates, each of which performs the logic NOR function.

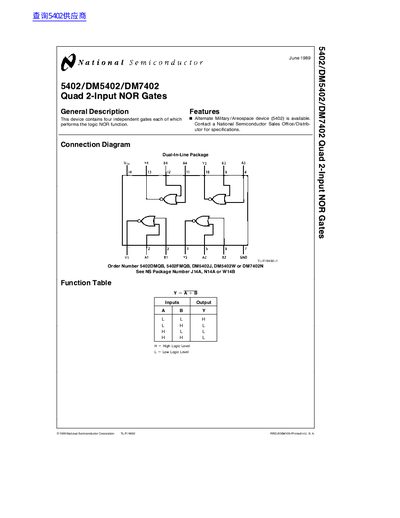

This document provides technical specifications for the National Semiconductor 5402/DM5402/DM7402 Quad 2-Input NOR Gates. It details the logic function, connection diagrams, and function tables for the device, which contains four independent gates performing the NOR logic function.
| Supply Voltage | 4.5V to 5.5V (DM7402) |
|---|---|
| High Level Input Voltage | 2V |
| Low Level Input Voltage | 0.8V |
The device performs the logic NOR function.
The device contains four independent gates.
The maximum supply voltage is 5.5V.
