This document describes TL�F�6495 DM5405�DM7405 Hex Inverters with Open-Collector Outputs. The open-collector outputs require external pull-up resistors for proper logical operation.

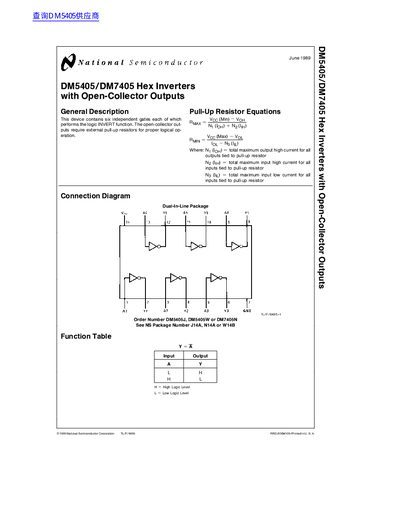

This document provides technical specifications for the DM5405 and DM7405 Hex Inverters with Open-Collector Outputs. It includes general descriptions, pull-up resistor equations, connection diagrams, and function tables. The datasheet covers absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics such as input/output voltages and currents.
| Supply Voltage (Voc) | 4.5V to 5.5V (DM5405) |
|---|---|
| High Level Input Voltage (VIH) | 2V |
| Low Level Input Voltage (VIL) | 0.8V |
| Operating Temperature (DM54) | -55°C to +125°C |
| Operating Temperature (DM74) | 0°C to +70°C |
| Propagation Delay Time (Low to High) | 55 ns |
| Propagation Delay Time (High to Low) | 45 ns |
The device contains six independent gates each of which performs the logic INVERT function.
Yes, the open-collector outputs require external pull-up resistors for proper logical operation.
The available order numbers are DM5405J, DM5405W, or DM7405N.
