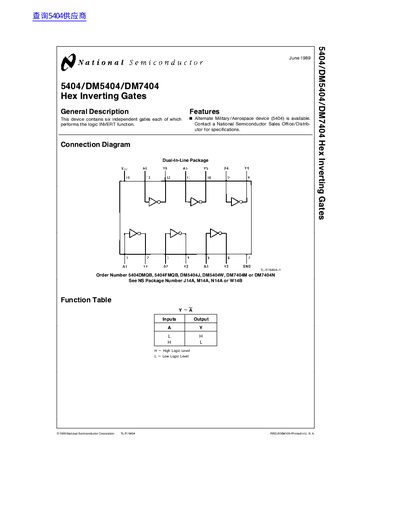

National Semiconductor 5404/DM5404/DM7404 Hex Inverting Gates Datasheet

This document describes the features and functions of the TL F6494 5404 DM5404 DM7404 six independent inverting gates.

Brand: National Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 108 KB
Published: 12 June, 2012
Updated: 28 September, 2023
MD5 checksum: 0EFAE46D96BB161A4E99A752999F28F6
PDF: National Semiconductor 5404/DM5404/DM7404 Hex Inverting Gates Datasheet PDF

About this manual

This document provides technical specifications for the National Semiconductor 5404/DM5404/DM7404 Hex Inverting Gates. The device contains six independent gates that perform the logic INVERT function. It is available in military/aerospace (5404) and commercial (74) variants with specific operating temperature ranges.

What's inside

General Description
Connection Diagram
Function Table
Absolute Maximum Ratings
Recommended Operating Conditions
Electrical Characteristics
Switching Characteristics
Physical Dimensions

Specifications

Supply Voltage (DM5404)	4.5V to 5.5V
Operating Temperature (DM54)	-55°C to +125°C
Operating Temperature (DM74)	-55°C to +125°C
High Level Output Current	-0.4 mA
Low Level Output Current	16 mA
Propagation Delay (Low to High)	22 ns
Propagation Delay (High to Low)	15 ns

Frequently asked questions

What logic function does this device perform?

The device contains six independent gates that perform the logic INVERT function.

What is the maximum supply voltage for the DM5404?

The maximum supply voltage for the DM5404 is 5.5V.

What is the operating temperature range for the DM7404?

The operating temperature range for the DM7404 is -55°C to +125°C.
