This document describes four independent gate circuits of DM5403 and DM7403 models, each of which performs the logic NAND function. The device has open-collector outputs, which require external pull-up resistors for proper logical operation.

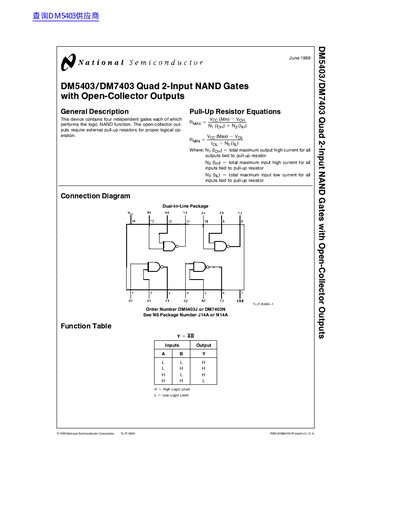

This document provides technical specifications for the DM5403 (Military) and DM7403 (Commercial) Quad 2-Input NAND Gates featuring open-collector outputs. The device contains four independent gates that perform the logic NAND function, requiring external pull-up resistors for proper operation. It includes connection diagrams, function tables, and absolute maximum ratings for both military and commercial temperature ranges.
| Supply Voltage (Min) | 4.5 V |
|---|---|
| Low Level Output Current | 16 mA |
| Operating Temperature (Military) | -55°C to +125°C |
| Operating Temperature (Commercial) | 0°C to +70°C |
The device performs the logic NAND function.
Yes, external pull-up resistors are required for proper logical operation.
