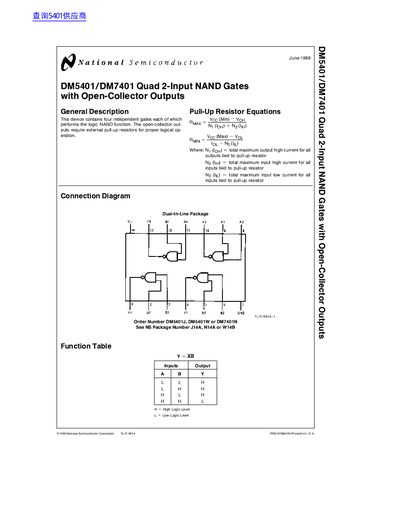

National Semiconductor DM5401/DM7401 Quad 2-Input NAND Gates Datasheet

DM5401 and DM7401 are dual-input Nand gates with open-collector outputs.

Brand: National Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 98 KB
Published: 12 June, 2012
Updated: 30 September, 2023
MD5 checksum: 4F6A3EAE49A628888EB13685C4FC7F3D
PDF: National Semiconductor DM5401/DM7401 Quad 2-Input NAND Gates Datasheet PDF

About this manual

This document provides technical specifications for the DM5401 and DM7401, which are quad 2-input NAND gates featuring open-collector outputs. These devices require external pull-up resistors for proper logical operation and are available in 14-lead ceramic, molded, and flat packages.

What's inside

General Description
Connection Diagram
Function Table
Absolute Maximum Ratings
Recommended Operating Conditions
Electrical Characteristics
Switching Characteristics
Physical Dimensions

Specifications

Supply Voltage (DM5401)	4.5V to 5.5V
Operating Temperature (DM5401)	-55°C to +125°C
Operating Temperature (DM7401)	0°C to +70°C
Low Level Output Current	16 mA

Frequently asked questions

Do these gates require external components?

Yes, the open-collector outputs require external pull-up resistors for proper logical operation.

What is the maximum supply voltage?

The absolute maximum supply voltage rating is 7V.
