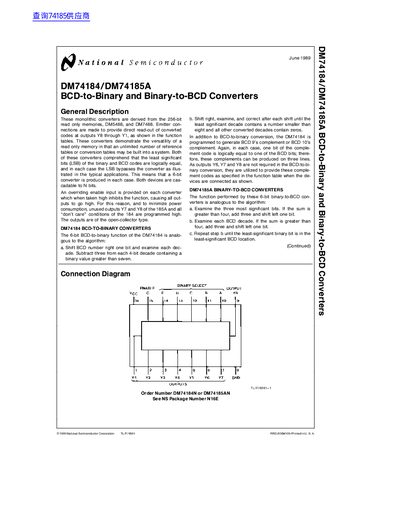

This document describes the TLF6561 DM74184 and DM74185A BCD-to-Binary and Binary-to-BCD Converters. These converters allow direct read-out of converted codes and demonstrate the versatility of read-only memory. The converters can be cascaded, have an overriding enable input, and open-collector outputs.
This document describes the monolithic DM74184 and DM74185A converters derived from 256-bit read-only memories. The DM74184 performs BCD-to-binary conversion with optional generation of BCD 9's or 10's complements, while the DM74185A performs binary-to-BCD conversion. Both devices feature open-collector outputs and are cascadable for N-bit applications.
| Supply Voltage (Voc) | 4.75 V to 5.25 V |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -65°C to +150°C |
| Low Level Output Voltage (VoL) | 0.4 V max |
| Propagation Delay Time (Enable) | 35 ns typ / max |
The recommended operating supply voltage ranges from a minimum of 4.75 V to a maximum of 5.25 V.
The devices operate in a free air temperature range from 0°C to +70°C.
The outputs are of the open-collector type.
