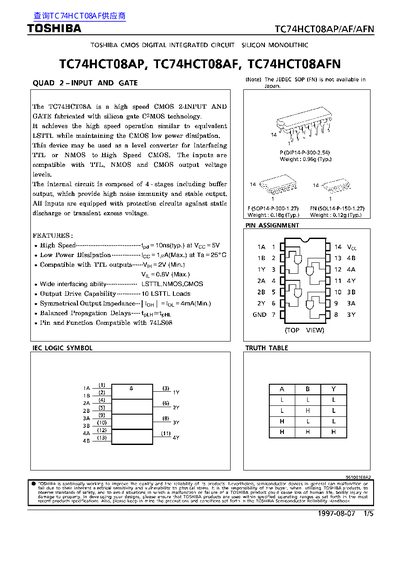

This document is a technical datasheet for the TOSHIBA TC74HCT08AP/AF/AFN series of high-speed CMOS digital integrated circuits. The device is a Quad 2-Input AND Gate fabricated with silicon gate C2MOS technology, designed to achieve high-speed operation similar to LSTTL while maintaining low power dissipation.
| Technology | silicon gate C2MOS technology |
|---|---|
| Propagation Delay (Typ) | 10ns |
| Power Dissipation (Max) | 14A(Max.) |
| Input Voltage Compatibility | TTL or NMOS |
| Operating Temperature | -40~85 °C |
The typical weight for this package is 0.969 grams.
The typical propagation delay time is 10 nanoseconds under these conditions.
