BZX384 is a low power voltage regulator diode produced by Philips Semiconductors. It is packaged in SOD323 (SC-76) plastic SMD package and has two tolerance ranges: ±2% and ±5%. The working voltage range is from 2.4 to 75 V.

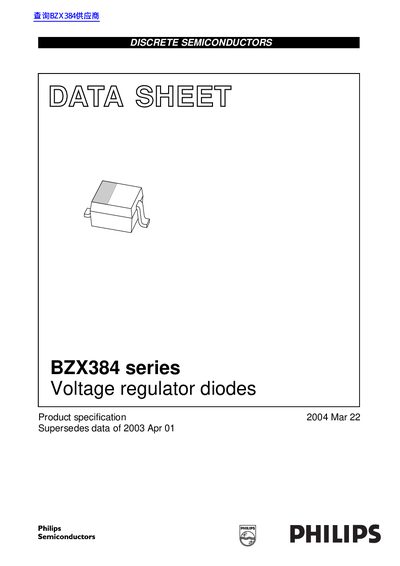

The document is a product specification sheet for the Philips BZX384 series of low-power voltage regulator diodes. These components are encapsulated in an SOD323 (SC-76) plastic surface-mounted device package and feature two tolerance series: +2% (BZX384-B) and approximately +5% (BZX384-C). The series includes 37 types with nominal working voltages ranging from 2.4 V to 75 V.
| Total power dissipation (max) | 300 mW |
|---|---|
| Non-repetitive peak reverse power dissipation (max) | 40 W |
| Working voltage range | 2.4 to 75 V |
| Package type | SOD323 (SC-76) |
The device can be stored between -65 °C and +150 °C.
The maximum forward voltage is 0.9 V when the current (Ip) is 10 mA.
