74ABT00 Quad 2-input NAND gate datasheet, including pin definition, logic symbol, function table, package information, etc.

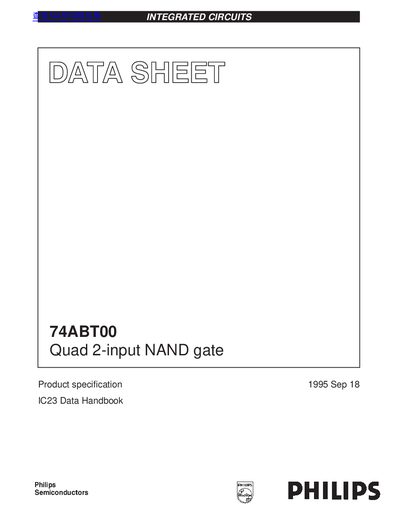

This document is a product specification datasheet for the Philips 74ABT00, which functions as a Quad 2-input NAND gate. It provides detailed electrical characteristics and logic definitions for the device.
The datasheet covers absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, and pin descriptions. It also includes ordering information for various plastic packages including DIP, SO, SSOP, and TSSOP.
| Operating temperature range | -40 to +85 °C |
|---|---|
| DC supply voltage (VCC) | 4.5 to 5.5 V |
| High-level output current | -15 mA |
| Low-level output current | 20 mA |
It is a Quad 2-input NAND gate.
Each gate has two data inputs (An-Bn) and one data output (Yn).
The device is available in 14-Pin Plastic DIP, SO, SSOP Type II, and TSSOP Type I.
