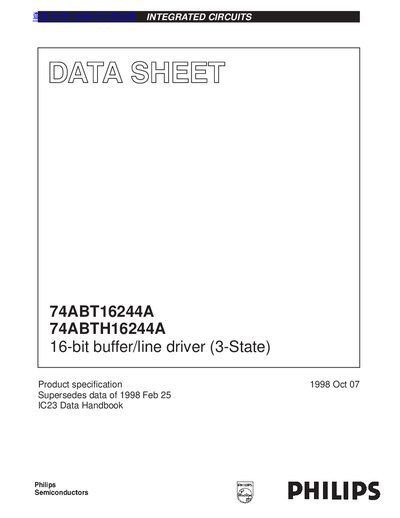

This document describes the features and characteristics of the 74ABT16244A and 74ABTH16244A 16-bit buffer/line drivers (3-State).
The Philips 74ABT16244A and 74ABTH16244A are high-performance BiCMOS devices designed as 16-bit buffers ideal for driving bus lines. The 74ABT16244A model features four Output Enables, each controlling four 3-State outputs, while the 74ABTH16244A incorporates bus hold data inputs to eliminate the need for external pull-up resistors. These devices combine low static and dynamic power dissipation with high speed and high output drive capabilities.
| Number of bits | 16-bit |
|---|---|
| Output capability (High) | +64 mA |
| Output capability (Low) | -32 mA |
| Operating temperature range | -40°C to +85 °C |
| Supply voltage (Min) | 4.5 V |
| Supply voltage (Max) | 5.5 V |
| Input capacitance | 4 pF |
| Output capacitance | 7 pF |
The 74ABT16244A does not have the bus hold feature, while the 74ABTH16244A incorporates bus hold data inputs.
The device features four Output Enables (1OE, 2OE, 3OE, 4OE), each controlling four of the 3-State outputs.
Yes, live insertion and extraction are permitted for this device.
