The 74ABT162244 is a 16-bit buffer/line driver with 30Ω series termination resistors (3-State) produced by Philips Semiconductors. It has multiple VCC and GND pins to minimize switching noise. The device features four Output Enables (1OE, 2OE, 3OE, 4OE), each controlling four of the 3-State outputs. The 74ABT162244 is designed with 30Ω series resistance in both the upper and lower output structures, which can reduce line noise in applications such as memory address drivers.

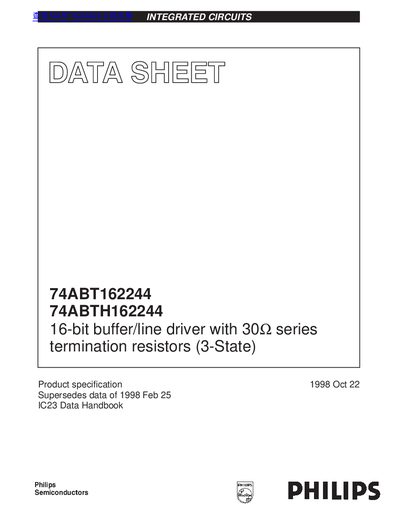

This document is a product specification datasheet for the Philips Semiconductors integrated circuits 74ABT162244 and 74ABTH162244. These are high-performance BiCMOS devices designed as 16-bit buffers ideal for driving bus lines, featuring low static and dynamic power dissipation with high speed.
| Device Type | 16-bit buffer/line driver with 30Q series termination resistors (3-State) |
|---|---|
| Output Capability (High) | +12 mA |
| Output Capability (Low) | -32 mA |
| Operating Temperature Range | -40°C to +85°C |
The 74ABTH162244 incorporates bus hold data inputs which eliminate the need for external pull-up resistors, whereas the standard part does not.
The device operates within a free-air temperature range of -40°C to +85°C.
The output can sink up to 32 mA in the Low state.
