74ABT08 is a quad 2-input AND gate produced by Philips Semiconductors

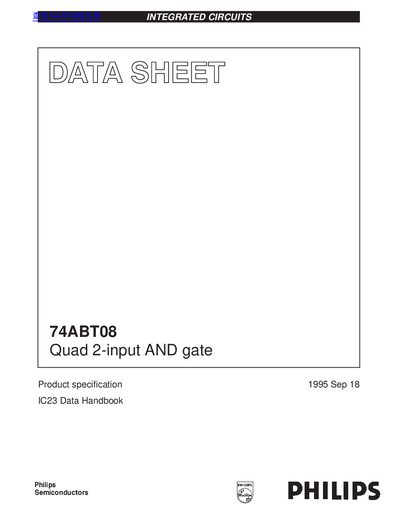

This document is a product specification datasheet for the Philips 74ABT08, a Quad 2-input AND gate integrated circuit. It provides detailed electrical characteristics, including propagation delay, output voltage levels, and supply current under various operating conditions. The document also includes logic diagrams, function tables, and absolute maximum ratings for the device.
| Operating temperature range | -40°C to +85°C |
|---|---|
| Supply voltage (VCC) | 4.5V to 5.5V |
It is a Quad 2-input AND gate.
The DC supply voltage should be between 4.5V and 5.5V.
The storage temperature range is from -65°C to 150°C.
