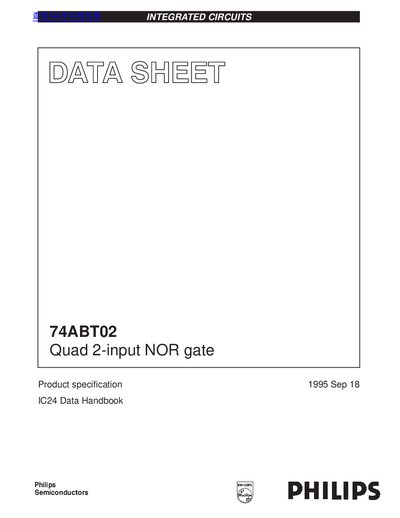

This document is about the product specification of Philips Semiconductors 74ABT02 Quad 2-input NOR gate. It provides information about the pin configuration, logic symbol, logic diagram, function table, and performance parameters of the product.
This document is a product specification datasheet for the Philips 74ABT02, a Quad 2-input NOR gate integrated circuit. It provides quick reference data including logic diagrams, pin descriptions, and function tables for the device.
| Logic Function | Quad 2-input NOR gate |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage (VCC) | 4.5V to 5.5V |
| High-level Input Voltage (VIH) | 2.0V |
| Low-level Input Voltage (VIL) | 0.8V |
| High-level Output Current (IOH) | -15 mA |
| Low-level Output Current (IOL) | 20 mA |
| Propagation Delay (tPLH) | 1.0 ns (Typ) |
The device functions as a Quad 2-input NOR gate.
The device can be stored between -65°C and 150°C.
