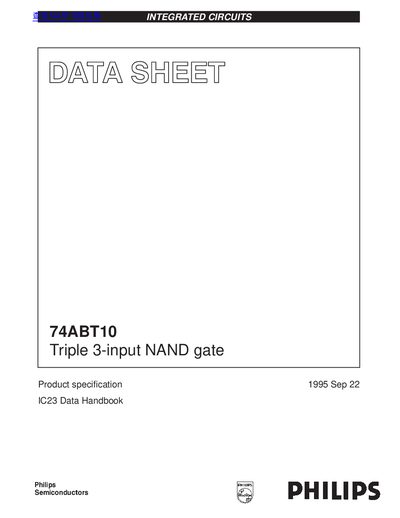

Philips 74ABT10 Triple 3-input NAND Gate Datasheet

The 74ABT10 is a triple 3-input NAND gate from Philips Semiconductors. It has a supply voltage of 5V and a power consumption of 50 µA.

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 9
File format: PDF
File size: 97 KB
Published: 12 June, 2012
Updated: 30 September, 2023
MD5 checksum: 231DF48DB5040F2C4F48C5B701FA14F6
PDF: Philips 74ABT10 Triple 3-input NAND Gate Datasheet PDF

About this manual

This document is a product specification datasheet for the Philips 74ABT10, a Triple 3-input NAND gate integrated circuit. It provides detailed electrical characteristics, logic diagrams, and pin configurations for the device.

What's inside

QUICK REFERENCE DATA
PIN CONFIGURATION
FUNCTION TABLE
ABSOLUTE MAXIMUM RATINGS
RECOMMENDED OPERATING CONDITIONS
DC ELECTRICAL CHARACTERISTICS
AC CHARACTERISTICS
ORDERING INFORMATION
PACKAGE DIMENSIONS

Specifications

Logic Function	Triple 3-input NAND gate
Operating Temperature Range	-40°C to +85°C
DC Supply Voltage	4.5V to 5.5V
High-level Input Voltage	2.0V
Low-level Input Voltage	0.8V

Frequently asked questions

What is the logic function of the 74ABT10?

The 74ABT10 is a Triple 3-input NAND gate.

What are the recommended operating conditions for the supply voltage?

The recommended DC supply voltage range is 4.5V to 5.5V.

What is the maximum junction temperature for this device?

The maximum junction temperature should not exceed 150°C.
