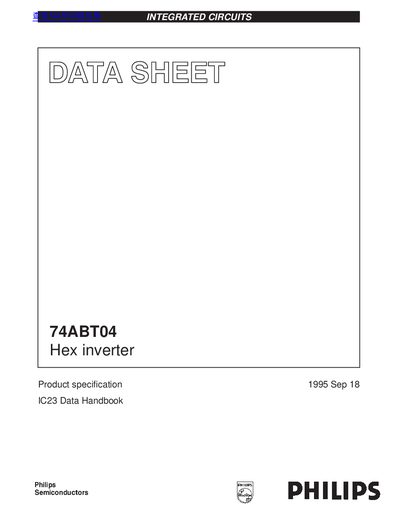

Philips 74ABT04 Hex Inverter Datasheet

This document is the product specification of the 74ABT04 hex inverter released by Philips Semiconductors on September 18, 1995. It describes the features and characteristics of the product.

Brand: Philips
Category: INTEGRATED CIRCUITS
Document type: Datasheet
Language: English
Pages: 10
File format: PDF
File size: 98 KB
Published: 12 June, 2012
Updated: 29 September, 2023
MD5 checksum: 67C70460034DE524001F77A3BE3D5A42
PDF: Philips 74ABT04 Hex Inverter Datasheet PDF

About this manual

This document is a product specification datasheet for the Philips 74ABT04 Hex inverter. It provides comprehensive technical data including logic diagrams, pin descriptions, and functional tables. The device is designed for digital logic applications and operates with a supply voltage range of 4.5V to 5.5V.

What's inside

Product Specification
Quick Reference Data
Pin Configuration
Logic Symbol
Function Table
Ordering Information
Absolute Maximum Ratings
DC Electrical Characteristics
AC Characteristics
Package Dimensions

Specifications

Supply voltage (VCC)	4.5V to 5.5V
Operating temperature range	-40°C to +85°C
Number of inverters	6

Frequently asked questions

What is the supply voltage range for the 74ABT04?

The recommended operating supply voltage is between 4.5V and 5.5V.

How many inverters are in the 74ABT04 chip?

The 74ABT04 contains six inverters.

What is the maximum storage temperature?

The device can be stored between -65°C and 150°C.
