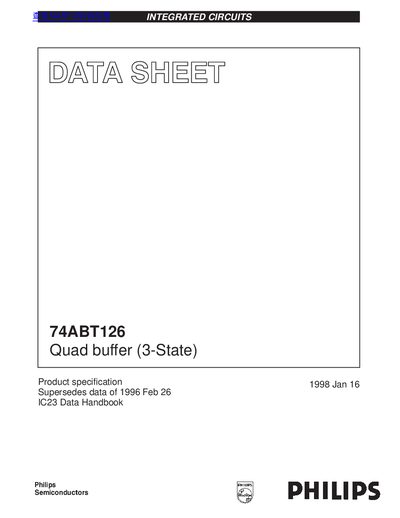

The document is about the product specification of Philips Semiconductors, specifically describing the features and characteristics of the 74ABT126 Quad buffer (3-State), including four output enables, 3-state buffers, live insertion/extraction, output capability, latch-up protection, ESD protection, power-up 3-state, etc.
The Philips 74ABT126 is a high-performance BiCMOS device designed as a quad buffer ideal for driving bus lines. It features four Output Enables, each controlling one of the 3-State outputs, allowing for live insertion and extraction without latch-up risks. The device combines low static and dynamic power dissipation with high speed and output drive capabilities.
| Output Capability | +64mA/-32mA |
|---|---|
| ESD Protection | > 2000V |
| Operating Temperature Range | -40°C to +85°C |
The absolute maximum rating for DC supply voltage (Vcc) is -0.5 to +7.0 V.
Yes, the device allows for live insertion and extraction of the IC into a circuit board.
