BAL74W is a high-speed switching diode fabricated in planar technology and encapsulated in the very small plastic SMD SOT323 package. This product has a very high switching speed and can be used for high-speed switching in surface mount circuits.

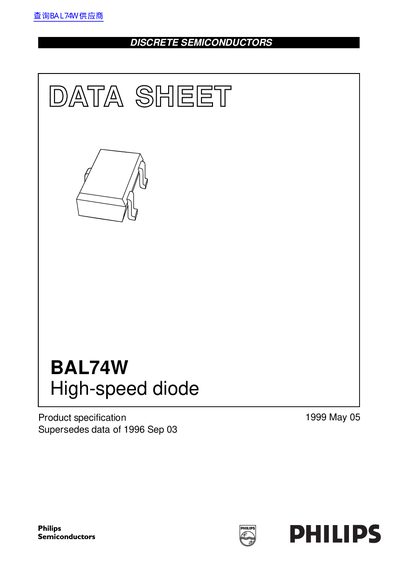

The document is a product specification for the BAL74W, a high-speed switching diode fabricated in planar technology. It is designed for use in surface-mounted circuits and is encapsulated in a very small plastic SOT323 package. Key features include a maximum repetitive peak reverse voltage of 85 V and a maximum repetitive peak forward current of 500 mA.
| Repetitive peak reverse voltage | 85 V |
|---|---|
| Continuous reverse voltage | 75 V |
| Continuous forward current | 175 mA |
| Repetitive peak forward current | 500 mA |
| Reverse recovery time | 4 ns |
| Diode capacitance | 1.5 pF |
| Thermal resistance junction-to-ambient | 625 K/W |
The maximum junction temperature is 150 °C.
The device can be stored between -65 °C and +150 °C.
