This document describes the features and characteristics of SMD transient voltage suppressors with model numbers TV04A5V0 to TV04A171. These suppressors are ideal for surface mount applications and have fast response time and low leakage current performance.

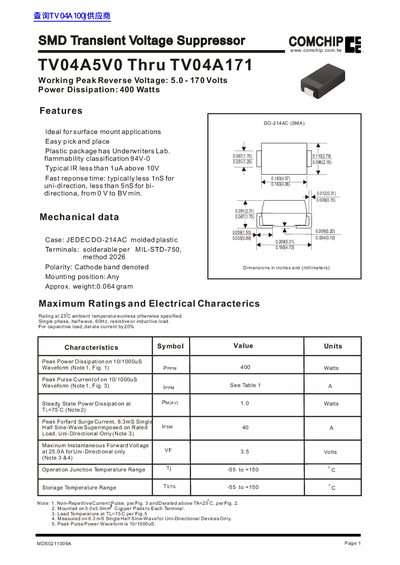

The document details the features of the COMCHIP TV04A5V0 through TV04A171 SMD Transient Voltage Suppressors. Key features include suitability for surface mount applications, an Underwriters Lab 94V-0 flammability classification, and fast response times typically less than 1 nanosecond for uni-directional devices.
The datasheet lists absolute maximum ratings such as a peak power dissipation of 400 Watts on a 10/1000uS waveform. It also provides comprehensive electrical characteristics including reverse voltage ranges from 5V to 170V, forward surge current capabilities, and junction capacitance curves for both uni-directional and bi-directional variants.
| Peak Power Dissipation (10/1000uS) | 400 Watts |
|---|---|
| Package Type | JEDEC DO-214AC molded plastic |
| Flammability Classification | UL 94V-0 |
The typical response time is less than 1 nanosecond.
The suffix K denotes devices with a 10% tolerance.
