CZRC5348 Thru CZRC5388 is a low power surface mount zener diode from COMCHIP, which has low inductance, built-in strain relief, high temperature soldering and other features.

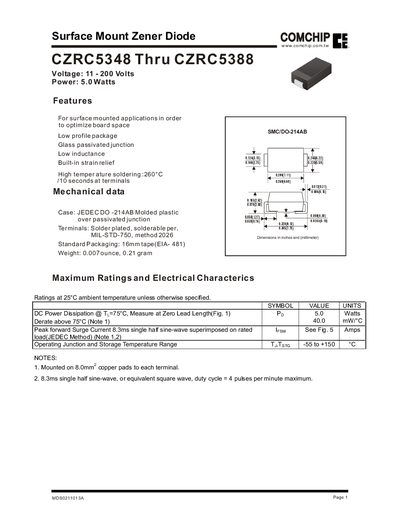

The CZRC5348‑CZRC5388 series are surface‑mount Zener diodes offered by COMCHIP. They cover a voltage range of 11 V to 200 V with a maximum power dissipation of 5 W and are supplied in a low‑profile JEDEC DO‑214AB (SMC) package.
The document provides maximum ratings, electrical characteristics, mechanical data, and a set of characteristic curves for temperature coefficient, thermal response, and surge current capability. It also includes a detailed table of part numbers with their nominal voltages, leakage currents, and other key parameters.
| Voltage range | 11 - 200 V |
|---|---|
| Power dissipation | 5.0 W |
| Package | JEDEC DO‑214AB (SMC/DO‑214AB) low‑profile |
| Weight | 0.21 g |
The diodes are rated for a maximum power dissipation of 5.0 W.
They are supplied in a JEDEC DO‑214AB (SMC/DO‑214AB) low‑profile surface‑mount package.
Additional information is available on COMCHIP’s website at www.comchip.com.tw.
