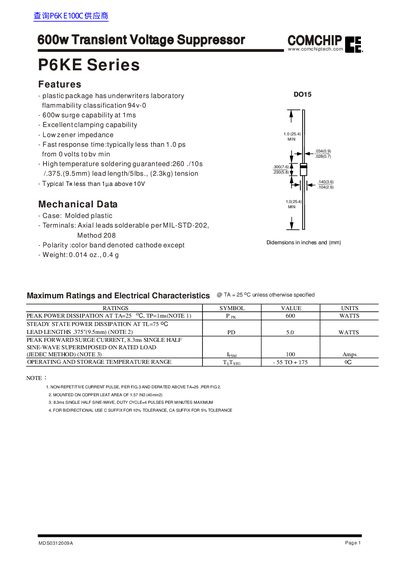

COMCHIP P6KE Series Transient Voltage Suppressor Datasheet

600w Transient Voltage Suppressor 600w Transient Voltage Suppressor Peak power dissipation is 600w, response time is less than 1.0 ps, impedance is low, and it has 600w surge capability

Brand: COMCHIP
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 100 KB
Published: 12 June, 2012
Updated: 30 September, 2023
MD5 checksum: 33E23FD284946211CE9B955596325689
PDF: COMCHIP P6KE Series Transient Voltage Suppressor Datasheet PDF

About this manual

This document provides technical specifications for the COMCHIP P6KE Series Transient Voltage Suppressors (TVS). It details key features such as a 600W surge capability, low zener impedance, and fast response times. The datasheet includes mechanical data for the molded plastic package and terminals compliant with MIL-STD-202.

What's inside

Features
Mechanical Data
Maximum Ratings
Electrical Characteristics
Derating Curves
Pulse Waveform
Junction Capacitance

Specifications

Peak Power Dissipation	600 Watts
Steady State Power Dissipation	50 Watts
Peak Forward Surge Current	100 Amps
Operating Temperature Range	-55 to +175 C
Flammability Classification	94V-0

Frequently asked questions

What is the typical response time of the P6KE Series?

The typical response time is less than 1.0 ps from 0 volts to breakdown voltage.

What is the maximum non-repetitive current pulse waveform duration?

The waveform is an 8.3ms single half sine-wave.

What is the lead length for the maximum steady state power rating?

The lead length is 0.375 inches (9.5mm).
