Features -Glass passivated chip. -Low leakage. -Uni and Bidirection unit. -Excellent clamping capability. -Very Fast response time.

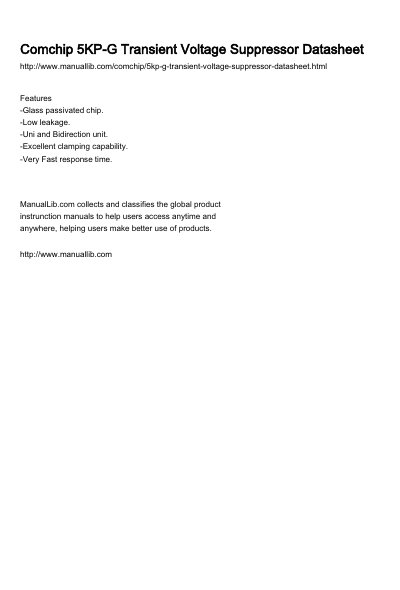

The document provides a comprehensive overview of the Comchip 5KP-G Series Transient Voltage Suppressor (TVS). Key features include a glass passivated chip construction, low leakage current, and excellent clamping capability with very fast response times. The devices are available in both unidirectional and bidirectional configurations to protect circuits from transient voltage spikes.
| Power Dissipation | 5000 Watts |
|---|---|
| Stand-off Voltage Range | 6.8V ~ 440V |
| Operating Temperature Range | -55 to +150 °C |
| Case Material Recognition | UL 94V-0 |
The peak forward surge current for a single half sine-wave unidirectional device is 500 A.
The series offers both Uni (unidirectional) and Bi (bidirectional) unit options.
