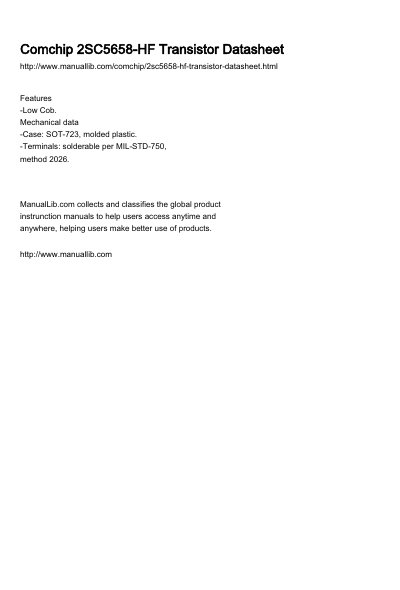

Features -Low Cob. Mechanical data -Case: SOT-723, molded plastic. -Terminals: solderable per MIL-STD-750, method 2026.
This document is a datasheet for the Comchip 2SC5658-HF, an NPN general-purpose transistor. It highlights key features such as low output capacitance (Cob) and RoHS compliance. The device is housed in a molded plastic SOT-723 case with solderable terminals.
| Case | SOT-723, molded plastic |
|---|---|
| Collector-Base voltage | 60 V |
| Collector-Emitter voltage | 50 V |
| Collector current | 150 mA |
| Collector dissipation | 100 mW |
| Transition frequency | 180 MHz |
| Output capacitance | 3.5 pF |
The maximum continuous collector current is 150 mA.
The maximum junction temperature is 150 °C.
There are 8,000 pieces per reel in standard packaging.
